Weld Symbols

The font also includes Weld Symbols. These characters can only be pasted into a document or program that supports Unicode characters. Most newer documents and programs support this.

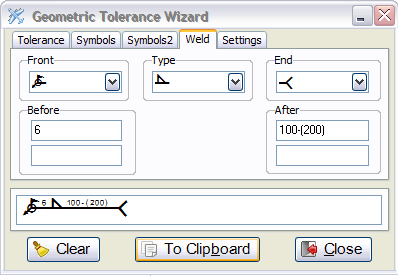

The Front and End dropdown boxes contain the same of arrow ends so you can point the arrow to the left or right. The middle Type dropdown box contains the various weld symbols.

The Before and After boxes allow the writing of letters and numbers on the Reference Line before and after the weld symbol. The two boxes on each side allow text to be above or below the Reference Line.
